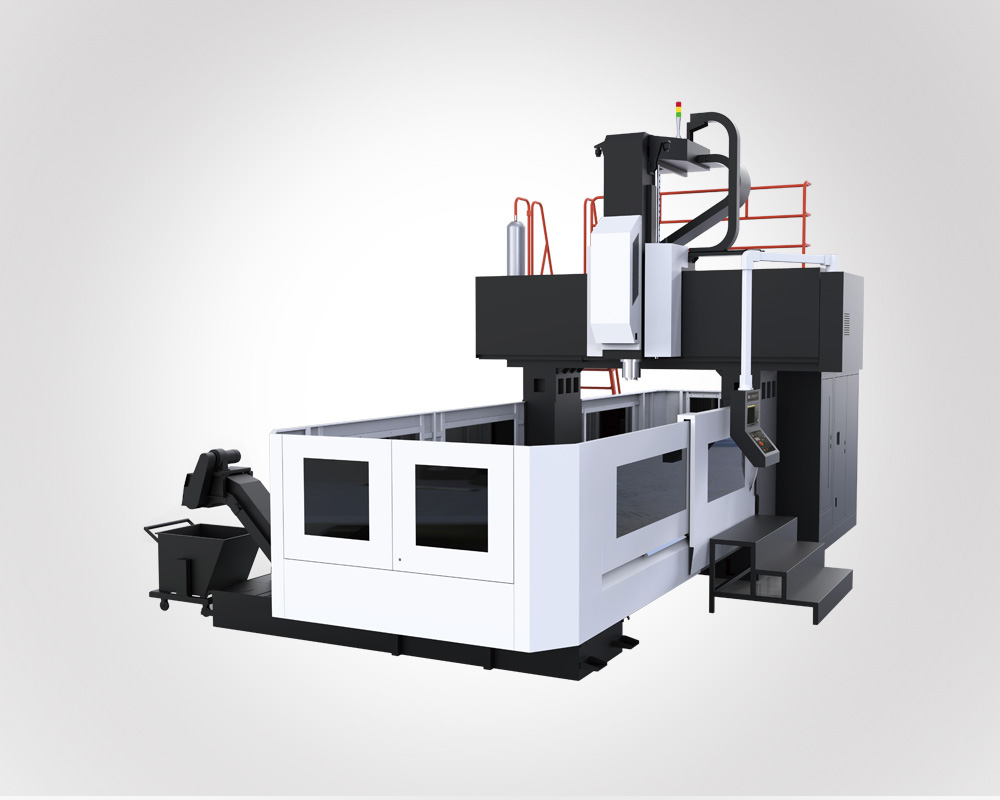

GL-37L Gantry Machining Center

Parameters	Unit	G6537L	G8537L	G10537L	G12537L
Door width	mm	3700	3700	3700	3700
X-axis	mm	6500	8500	10500	12500
Y-axis Travel	mm	4300	4300	4300	4300
Z-axis	mm	1250(1500)	1250(1500)	1250(1500)	1250(1500)
From spindle nose to worktable face	mm	200-1450(200-1700)	200-1450(200-1700)	200-1450(200-1700)	200-1450(200-1700)
Table width	mm	3200(3500)	3200(3500)	3200(3500)	3200(3500)
T-slot	mm	30	32	36	36
bearing	t	7	8	9	11
Spindle type		Direct connection + reduction gearbox	Direct connection + reduction gearbox	Direct connection + reduction gearbox	Direct connection + reduction gearbox
Spindle taper hole specification		BT50	BT50	BT50	BT50
Spindle speed	rpm	6000	6000	6000	6000
Main motor power	kW	22/26	22/26	22/26	22/26
Spindle Torque	N.m	770/910	770/910	770/910	770/910
Spindle box section	mm	450×450	450×450	450×450	450×450
X-axis Rapid Traverse	m/min	12	12	12	12
Y-axis Rapid Traverse	m/min	12	12	12	12
Z-axis Rapid Traverse	m/min	12	12	12	12
Cutting Speed	m/min	6	6	6	6
Positioning Accuracy X（half-closed loop）	mm	0.032	0.04	0.047	0.54
Positioning Accuracy Y（half-closed loop）	mm	0.028	0.028	0.028	0.028
Positioning Accuracy Z（half-closed loop）	mm	0.018	0.018	0.018	0.018
Repeatability Accuracy X（half-closed loop）	mm	0.022	0.026	0.029	0.034
Repeatability Accuracy Y（half-closed loop）	mm	0.019	0.019	0.019	0.019
Repeatability Accuracy Z（half-closed loop）	mm	0.008	0.008	0.008	0.008
Power capacity	Kva	50	50	50	50
Air source pressure	Mpa	0.65	0.65	0.65	0.65
Machine size height	mm	6400	6400	6400	6400
Floor area (about)	mm×mm	16800X7500	22800X7500	26800X7500	31300X7500
Machine weight	T	89.5	105.5	121	135.5
