| Parameters |
Unit |

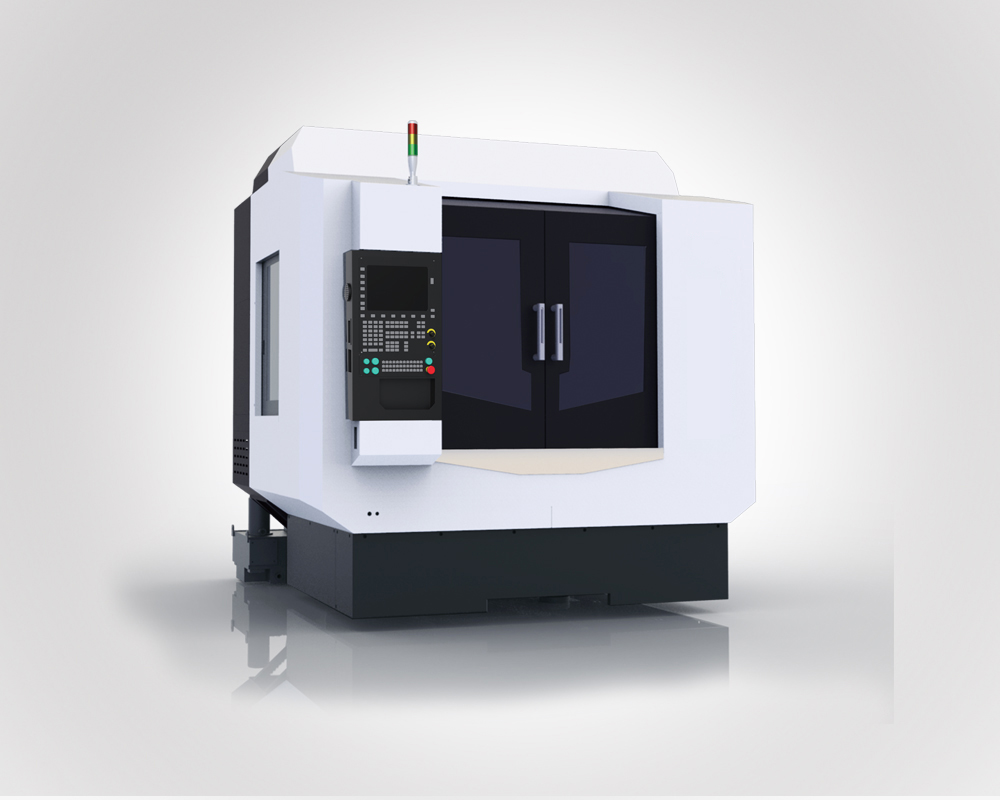

Vertical Drilling and Tapping Machining Center |
| X-axis Travel |
mm |
1100 |
| Y-axis Travel |
mm |
600 |
| Z-axis Travel |
mm |
350 |
| From spindle nose to worktable face |
mm |
250~600 |
| Distance from spindle center to column |
|
468 |
| Worktable Size |
mm |
1200*600 |
| Large load of workbench |
kg |
400 |
| T-slot |
mm |
14H7*5*120 |
| X/Y/Z-axis Rapid Traverse |
m/min |
60/60/60 |
| Feedrate speed |
|
|
| X/Y/Z -axis Cutting Speed |
m/min |
20/20/20 |
| acceleration |
|
1g |
| Spindle type |
|
Direct connection |
| Spindle taper |
|
BT30 |
| Spindle speed |
rpm |
12000 |
| Main motor power |
KW |
3.7/7.5 |
| Spindle Torque |
N.M |
23.6/47.7 |
| X/Y/Z Positioning Accuracy （half-closed loop） |
mm |
0.008（Full range） |
| X/Y/Z Repeatability Accuracy（half-closed loop） |
mm |
0.005（Full range） |
| ATC |
|
Turret type |
| ATC Capacity |
|
21 |
| Larger tool size |
mm |
φ100/φ140/250 |
| Larger tool weight |
kg |
3 |
| Air source pressure |
MPa |
0.65 |
| Power capacity |
KVA |
250~600 |
| Machine size（length*width*height） |
mm |
2760*2600*2720 |
| Machine weight |
kg |
6000 |
