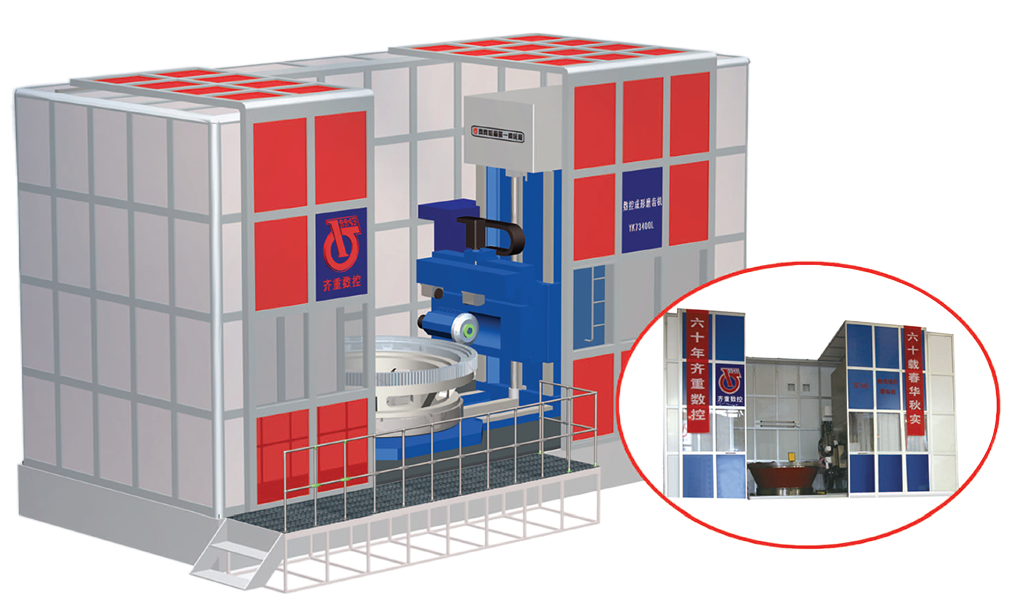

YK73400L CNC Formed-Gear Grinding Machine

YK73250L~YK73500L CNC form gear grinding machine is suitable for high precision grinding of involute straight gear and skew gear as well as special shaping of tooth type and tooth direction. The Max. machining outside circle range is Φ2500~Φ5000mm. It is suitable for regular grinding wheel and CBN grinding wheel. It is mainly machining of high precision gear satisfying high quality transmission system.

It has characters as follows:
1. It has six CNC axes and can implement 3-shaft interlocking.
2.The table is driven by moment motor, which has very high transmission accuracy and position accuracy, the end face run-out of table can reach to 0.008mm.
3.The machining accuracy of gear can reach to 5 degree precision criterion.

This machine consists of complete machines protective device, bed, column, slide, grinding head, grinding wheel trimmer, table, air-purifying and cooling separating filter device, hydraulic system, electric system, measuring system etc.

Parameters	Unit	YK73250L	YK73300L	YK73350L	YK73400L	YK73450L	YK73500L
Max. modulus	mm	40	40	40	40	40	40
Number of teeth.		Any	Any	Any	Any	Any	Any
Max. outside circle diameter	mm	2500	3000	3500	4000	4500	5000
Max. tooth depth	mm	100	100	100	100	100	100
Max. helix angle		40°	40°	40°	40°	40°	40°
Rotating speed of table	r/min	0~2.5	0~2.5	0~2	0~2	0~2	0~2
Load weight of table	kg	30000	30000	40000	40000	40000	50000
Table's diameter	mm	2000	2000	2250	2250	2250	2500
Max. power of grinding wheel spindle	kW	45	45	45	45	45	45
Max. diameter of grinding wheel	mm	500	500	500	500	500	500
Max. width of grinding wheel	mm	120	120	120	120	120	120
Max. speed rate of grinding wheel spindle	r/min	3130	3130	3130	3130	3130	3130
CNC system		Siemens 840DSL	Siemens 840DSL	Siemens 840DSL	Siemens 840DSL	Siemens 840DSL	Siemens 840DSL
The distance between grinding wheel center and table surface min./max.	mm	600/2150	600/2150	600/2150	600/2150	600/2150	600/2150
longitudinal stroke of grinding head slide	mm	1550	1550	1550	1550	1550	1550
Rapid speed of grinding head slide	mm/min	6000	6000	6000	6000	6000	6000
Axial moving speed of grinding wheel head	mm/min	0~2000	0~2000	0~2000	0~2000	0~2000	0~2000
Axial moving stroke of grinding wheel head	mm	450	450	450	450	450	450
Trimmer stroke of grinding wheel	mm	160	160	160	160	160	160
Trimmed wheel's diameter	mm	180	180	180	180	180	180
Max. speed rate of trimmed wheel	r/min	10000	10000	10000	10000	10000	10000
Rotating range of grinding wheel head		±40°	±40°	±40°	±40°	±40°	±40°
Rotating speed of grinding wheel head	r/min	0.5	0.5	0.5	0.5	0.5	0.5
Radial moving speed of column	mm/min	0~3000	0~3000	0~3000	0~3000	0~3000	0~3000
RENISHAW's probe		with	with	with	with	with	with
Diamond roller wheel No. of trimmer	pc	2	2	2	2	2	2
